Features:
Strong Compatibility: Compatible with multiple terminal systems, plug-and-play wired connection, suitable for retail terminal cash register scanning, compatible with various cash register systems, applicable to all industries.
High Durability: Shockproof, drop-proof, sound alarm, anti-static, anti-slip pad, ensuring the durability and service life of the product.

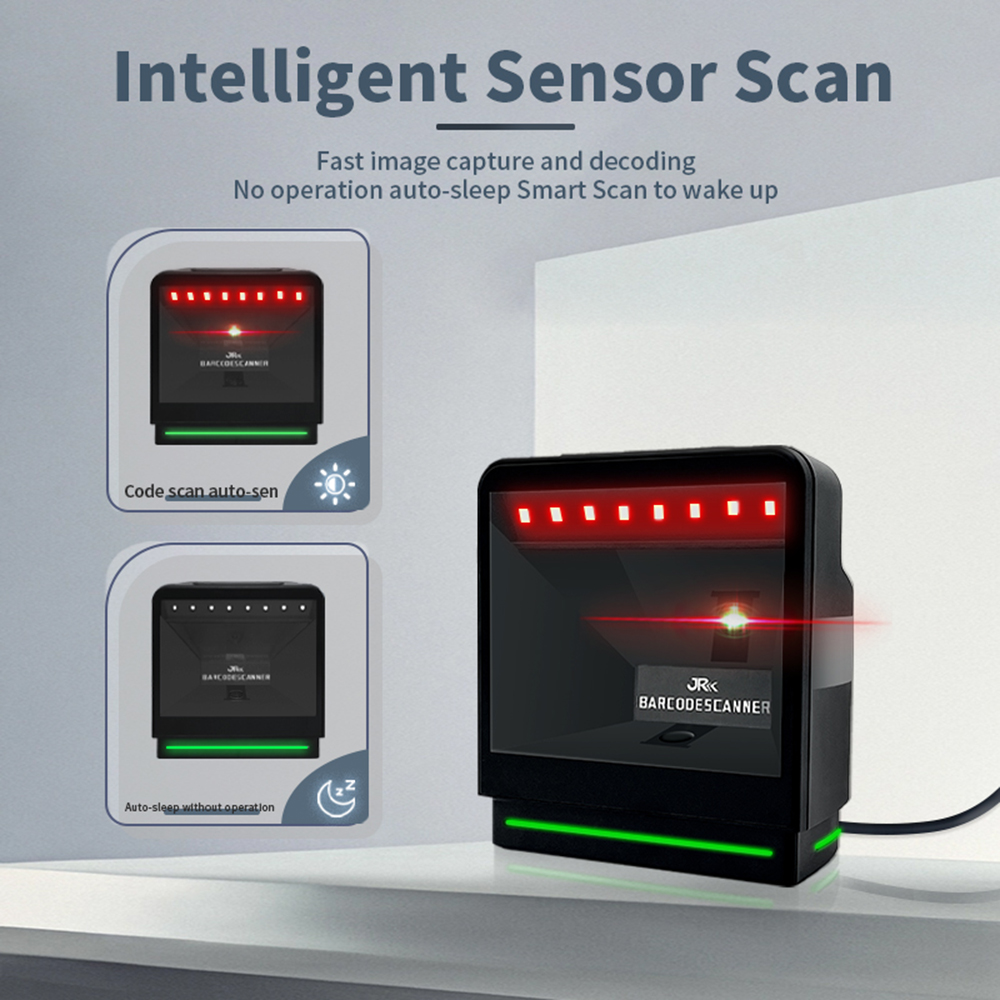

Intelligent Scanning: Intelligent sensor scanning, fast image capture and decoding, no operation automatic sleep intelligent scanning wake up.
Strong Scanning Capability: Easily scan product codes, 1D 2D QR codes, the scanning platform can quickly recognize, support scanning twisted, blurred and damaged product barcodes.
Auto-sensing: 2D Desktop Scanner, Hands-free auto-sensing, quickly scan the barcode on any item, recognize the payment code.
Wide Application: Mainly supports two-dimensional / full one-dimensional / screen barcodes, suitable for various occasions, can easily integrate multiple devices: supermarkets, assembly lines, restaurants, automatic recycling, scanning cash registers, scanning product barcodes.
Specification:
Color: Black
Material: ABS+PC
Light source type: 625nm LED light source complementary light
Decoding Capability: 2D QRCode, PDF417, MaxiCode, Aztec, DataMatrix(ECC200), Micro QR, Hanshin Code, Micro PDF417-Dimensional Code EAN13, EAN8, UPC-A, UPC-E, UPC-E, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5Code11MSIPlessey, RSS-14, Limited RSS, Extended RSSStan dard 2 of5, Plessey, ChinaPost 25, etc.
Scanning principle: image type CMOS
Trigger Mode: Inductive Mode / Continuous Mode / Command Mode
Scanning Angle: Elevation angle earth 65 ° turn angle 360 ° off angle 75 °
Scanning accuracy: ≥4.5mil
Reading depth of field: 5mil(Code39)2cm~13cm: UPC- 13mil 2cm~28cm.
20mil(Code39)2cm~35cm: 20mil QR Code)2cm~24cm
Communication Interface: USB- HID, RS232 (Optional) USB-COM
System Compatibility: Linux, Android, WindowsXP, 7, 8, 10, MAC
Cable Standard: 1.8m
Operating Temperature: -20°C~55°C
Storage Temperature: -20°C~60°C
Relative Humidity: 5%~95% (non-condensing)
Shock Resistance: Withstand 1.5m rolling drop test
Voltage: 5% of DC5V
Operating Current: 210mA
Product size:80mm*150mm*160mm
Product weight: 420g
Package size: 19.5*16.5*9.5cm
Package weight: 0.65kg
Package list:
1* Barcode Scanner
1* Cable
1* User manual
