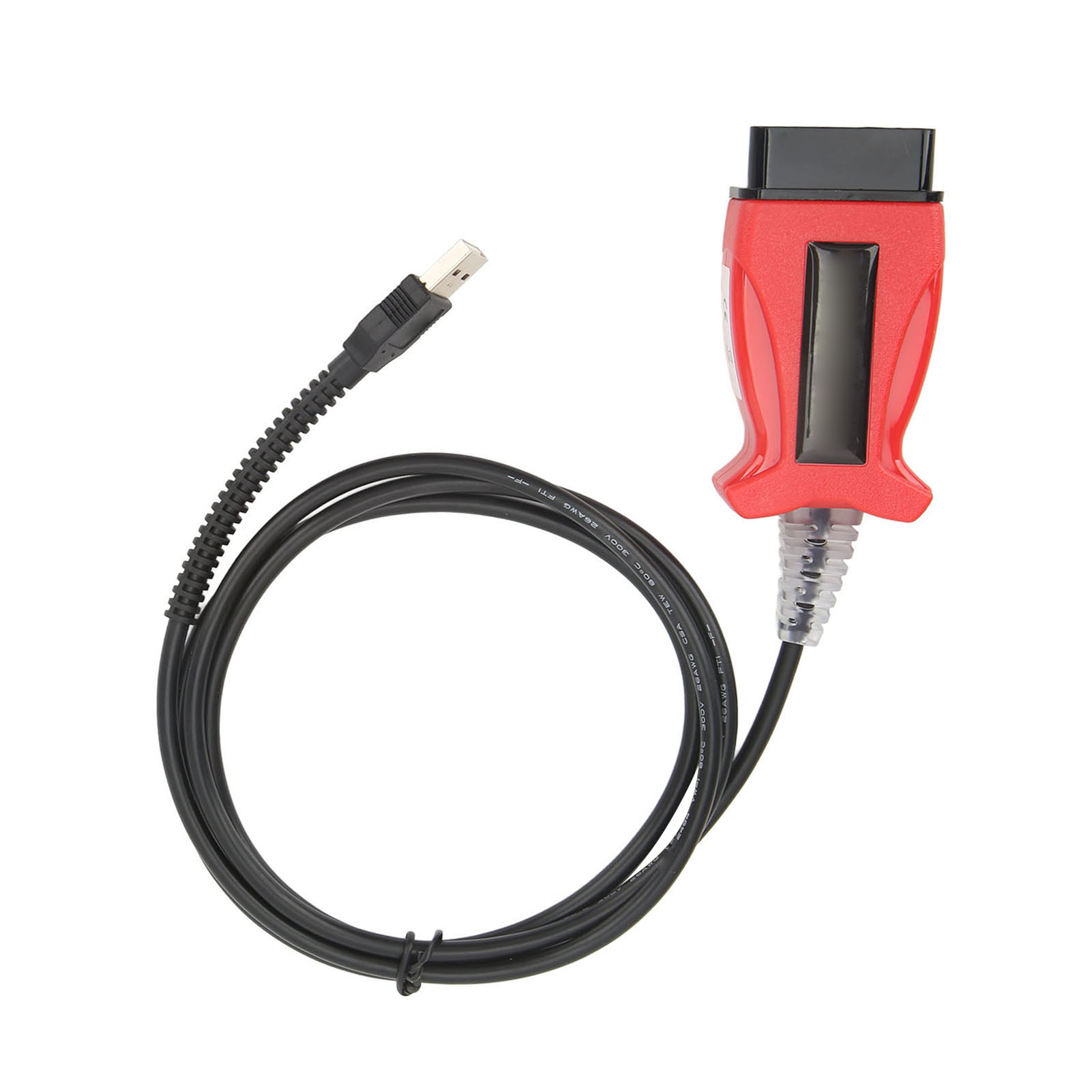

Item Type: OBD2 Cable Adapter
Material: ABS

UCDS Software: V1.27.001
UCDS Full License Adapter: Full mode activated, access to existing sections of the software, such as: VBF Loader, Update Wizard and Direct Config.
With 35 Tokens: Token only need for mileage programming and ECU chip tuning function (When use up tokens, send back to add token, Need pay extra cost.)
UCDS support odometer correction
Replacement for Ford cars from 2004 to 2017 Year.
Full Mode Activated
Best replacement for Ford Vehicle Communicate Module 2
Functions:
1. Read the fault code
2. Clear trouble codes
3. Read the data stream
4. Data recording
5. Module reset
6. Module installation
7. Reprogram the ECU TCM BCM and so on
8. Clear the gasbag (RCM) collision data
9. Read, backup, edit, and erase AsBuilt files
10. Read, backup, edit, and erase the underlying DirectConfig configuration file
11. Support power to enhance the brush to write, such as Mondeo 2.0T 200HP brush 240HP, 12 85HP brush 105HP, 150HP brush 163HP
12. Support VBF file directly to write
13. Support BIN file directly to write
14. Support online update vehicle entire module (Update Wizard)
15. Support replacement for MK2, 12 for MK3, winning, and other models meter mileage clear, brush to write
Features:
The dashboard can be displayed from English to Chinese; the new replacement for Mondeo power can be upgraded from low to high; the navigation OPS of replacement for Escape can be flashed; the SCT program can be input; the SCT device (token limited) can be replaced.
Supported Vehicles:

Replacement for MK2 (2004-2014) C307
Replacement for Focus MK3 (2012-2017) C346
Replacement for Wing tiger 15 wing tiger 17 wing tiger
Replacement for Mondeo wins Galay
Replacement for Mondeo 13 (Mondeo5)
Replacement for Explorer
Replacement for Transit
Replacement for Carnival B-Max
Replacement for Wing Bo

And other new models
Allows the User to:
Diagnose the majority of car parts and components that are connected to a central electrical module (GEM, BCMii) through the data bus (CAN);
Receive data embedded in the car components and modules, including their part number, version, calibration, serial number;
Make the necessary changes to the central configuration of the car, and change the configuration of the modules and components if necessary;
Update the calibration (firmware) of the modules and components of the vehicle, including the engine (the so called chip tuning);
Perform regular language adaptation of the audio modules(Russian language only);
Other…

1 x CD

1 x User Manual
