Item Type: Antenna
Material: ABS, Alloy Steel
Receiving Frequency Range: 50KHz-500MHz
Gain: 17dB at10MHz
Output Noise: -125dbm (at 10MHz, BW=100Hz)
P1dB: +15.5dBm at 10MHz
Supply Voltage: 5V-12V
Power Supply Current: 130mA-150mA
Antenna Interface: SMA (M)
Output Connector: SMA (F)
Small Ring Coaxial Cable Model: RG402
Small Ring Coaxial Cable Loss: 0.145dB/m
Small Loop Antenna Diameter: 600mm

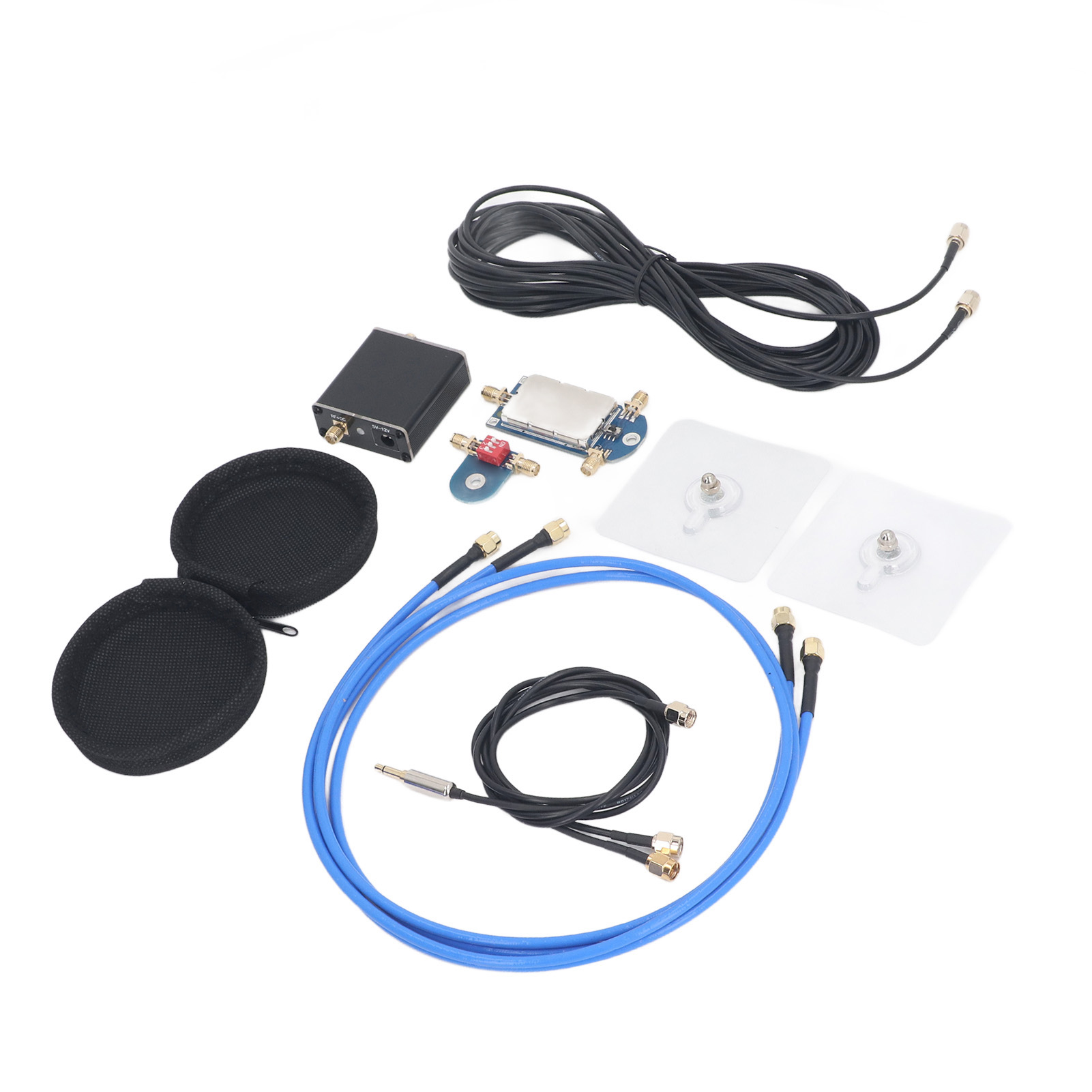

1 x Small Loop Antenna Amplifier Board
1 x Connector
1 x Headphone Jack Adapter
1 x Top Patch Panel
2 x Small Loop Coils (RG402 Coaxial Cable)
1 x 7 Meters Feeder Cable
1 x 1 Meter Feeder Cable
2 x Sticky Hooks
1 x Manual
1 x EVA Storage Bag
